Brief Introduction

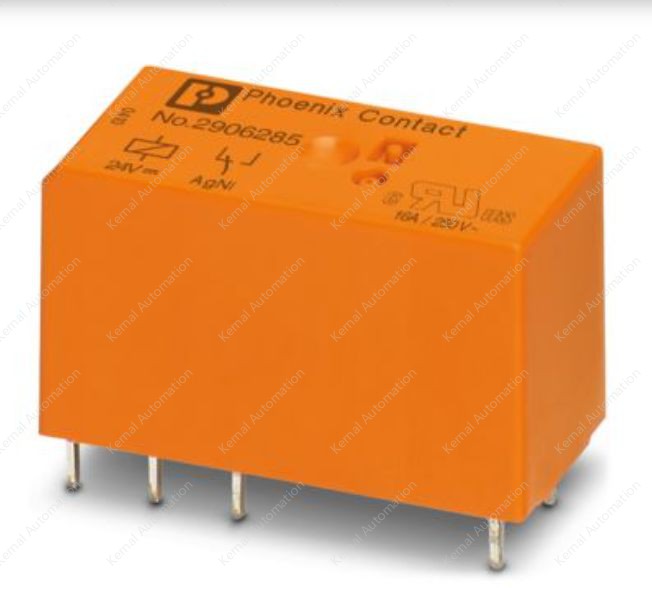

REL-MR-BL-24DC/21-21

Product Type: Single Relay.Electrical characteristicsInput data: The input voltage is rated at 24V DC and the input voltage range is 16.8V DC to 54V DC. The drive is monostable and non-polarized, with a typical input current of 17mA, a typical response time of 8ms, and a typical release time of 6ms at the rated input voltage.Output data: 2 changeover contacts for contact switching type, single contact type for switching contact, contact material for AgNi. The maximum switching voltage is 250V AC/DC, the minimum switching voltage is 5V (at 10mA), the limited continuous current is 8A, the maximum inrush current is 12A (20ms), the minimum switching current is 10mA (at 5V), and the maximum power rating (resistive load) is 190W (24V DC), 85W (48V DC), 60W (60V DC), 44W (110V DC), 60W (220V DC), 2000VA (250V AC), The switching capacity is 2A (at 24V, DC13), 1.5A (at 230V, AC15).
