Brief Introduction

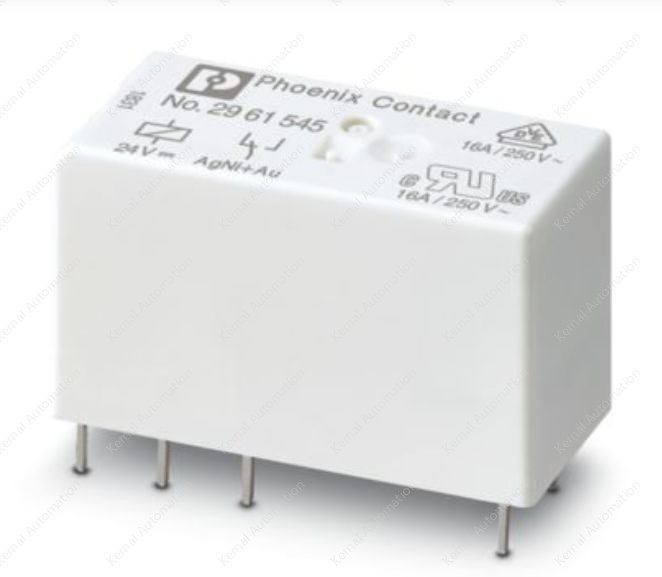

REL-MR-24DC/21HC AU

Basic information: It is a plug-in miniature power relay, and the product type is a single relay, which can be connected by plugging or welding.Electrical characteristicsInput Data: Rated input voltage of 24V DC, wide input voltage range of 15.6V DC to 57.6V DC, monostable, non-polarized drive, typical input current of 17mA at rated input voltage, typical response time of 7ms, typical release time of 3ms, coil resistance of 1440Ω±10% at 20°C.Output data: 1 changeover contact for contact switching type, single contact type for switching contact, contact material for AgNi, hard gold plating, maximum switching voltage of 30V AC or 36V DC with gold plating intact, 250V AC/DC after gold plating failure, 50mA limit continuous current at gold plating intact and 16A after failure.
