Brief Introduction

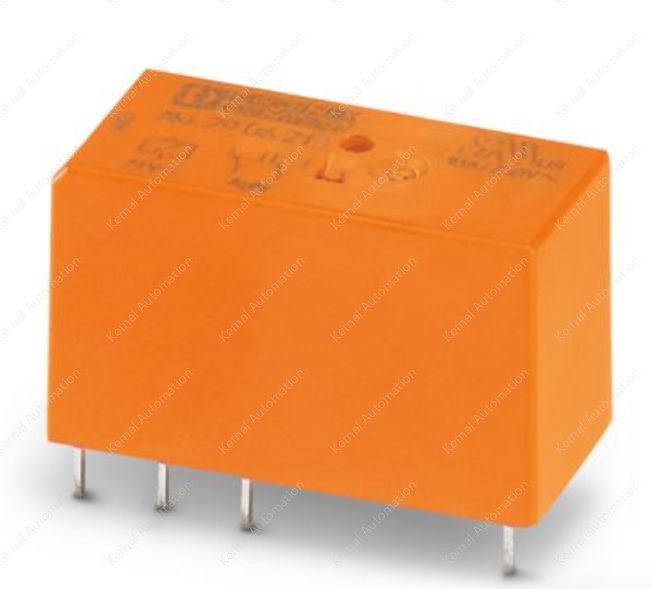

REL-MR-24DC/21-21/ATEX

Product Type: Single Relay.Electrical characteristicsInput data: The input voltage is rated at 24V DC and the input voltage range is 18.7V DC to 59.5V DC. The drive is monostable and non-polarized, with a typical input current of 17mA, a typical response time of 7ms, a typical release time of 3ms, and a coil resistance of 1440Ω±10% at 20°C.Output data: 2 changeover contacts for contact switching type, single contact type for switching contact, contact material for AgNi. The maximum switching voltage is 250V AC/DC, the minimum switching voltage is 5V (at 10mA), the limited continuous current is 8A, the maximum inrush current is 25A (20ms), and the minimum switching current is 10mA (at 5V). The switching capacitances are 2A (at 24V, DC13), 0.2A (at 250V, DC13), 3A (at 24V, AC15), 3A (at 120V, AC15), and 3A (at 250V, AC15).
