Brief Introduction

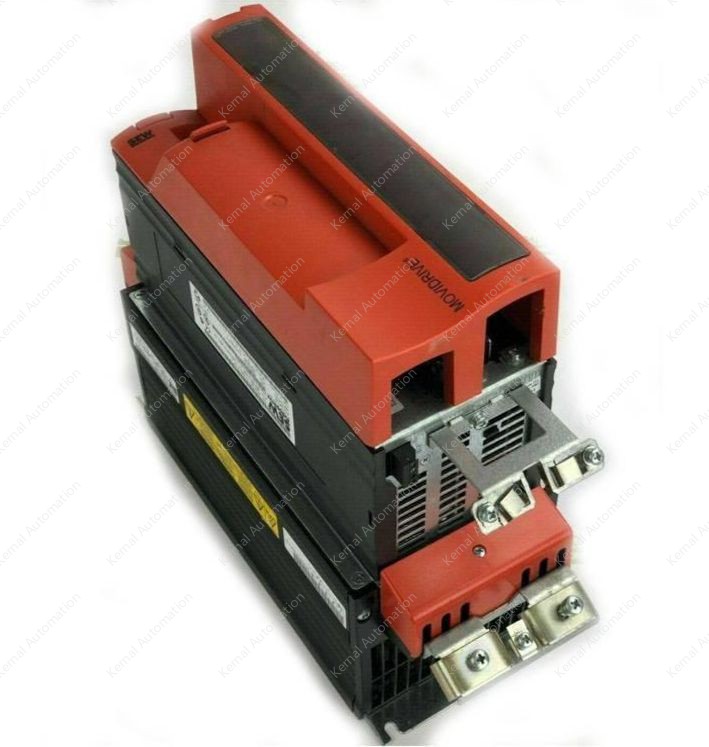

MDX61B0110-5A3-4-00

Basic parametersRated power: 11kW.Input parameters: three-phase AC 380 - 500V, power frequency 50 - 60Hz, input rated current 21.6A, input rated current (125%) 27.0A.Output parameters: output capacity 16.8kVA, output current 24A, output frequency range 0 - 599Hz (general, specific can be adjusted according to the settings).Overload capacity: 150% overload allowed for 60s, 175% overload allowed for 2s.Degree of protection: IP20.Dimensions: 135mm wide, 315mm high, 285mm deep.Weight: 6.6kg.Control functionsControl mode: Support voltage vector control (VFC), current vector control (CFC) and other control methods, which can realize high-precision control of the motor and meet the motor control needs in different application scenarios.Built-in functions: Integrated IPOS positioning and sequence control system for speed control, single-axis position control, and more. Drive tasks such as positioning and curling can be completed through standardized control programs, and the user can set parameters using the wizard without complex programming.
