Brief Introduction

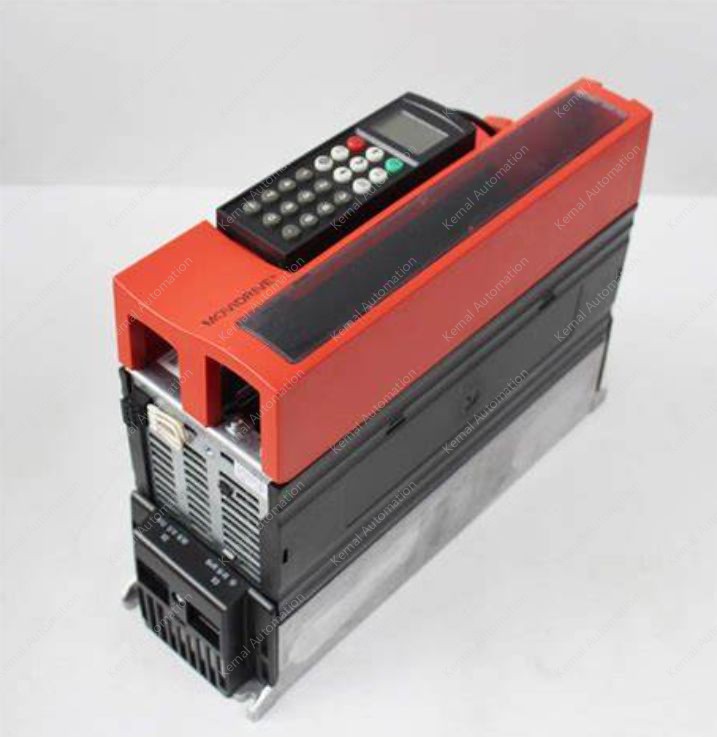

MDX61B0040-5A3-4-00

Basic parametersRated power: 4kW.Input parameters: rated voltage is three-phase AC 380 - 500V, power supply frequency 50 - 60Hz, input current 8.6A.Output parameters: output capacity 6.6kVA, output current 9.5A, output frequency range 0 - 599Hz.Overload capacity: 150% overload allowed for 60s, 125% continuous overload, 200% short-term overload for 1s (to 1.5kW).Degree of protection: IP20.Dimensions: Width 10.5cm, height 31.5cm, depth 23cm.Weight: Approx. 3.5kg.Control functionsControl mode: Support a variety of control methods, such as voltage vector control (VFC), current vector control (CFC), etc., to achieve high-precision control of the motor.Built-in functions: Integrated IPOS positioning and sequence control system for easy speed control, single-axis position control and other functions. Drive tasks such as positioning and curling can also be completed through standardized control programs, and the user can set the parameters through a wizard without complex programming.Communication capabilitiesThe RS485 interface and open CAN fieldbus are supported as standard, as well as a wide range of common industrial fieldbus communication options such as Profibus DPV1, Interbus, Interbus LWL and DeviceNet for communication with host computers or other devices.Other features:Energy-saving features: Built-in V/f and V2/f control energy-saving modes save energy by automatically adjusting the magnetic flux current, and can also display energy
