Brief Introduction

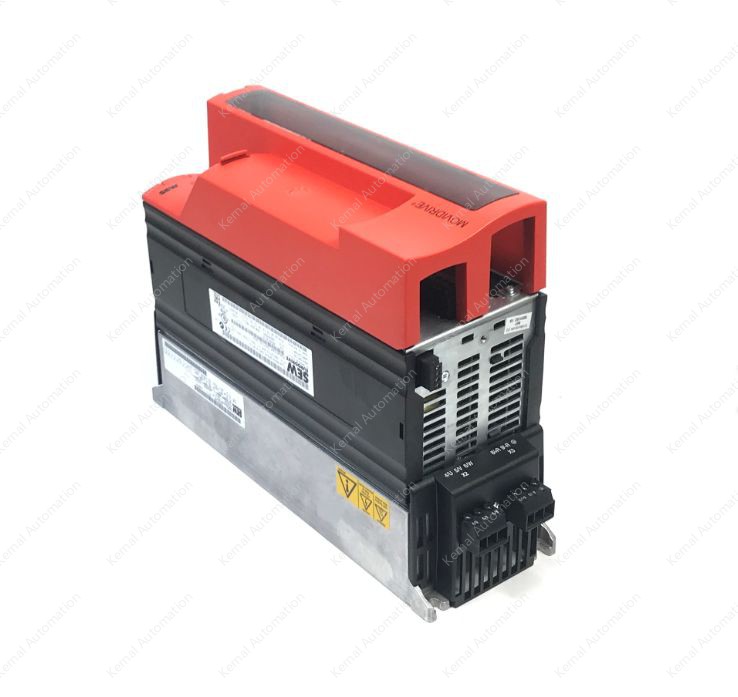

MDX61B0030-5A3-4-0T

Basic parametersApplicable motor power: 3kW.Input parameters: three-phase 380 - 500V AC, 50/60Hz, input current 6.3A.Output parameters: output capacity 4.8kVA, output current 7A, output frequency range is usually 0 - 180Hz (may be slightly different in different application scenarios).Overload Capacity: It has a certain overload capacity, such as 7.9A at 125% overload.Degree of protection: IP20.Dimensions: 105mm wide, 314mm high, 234mm deep, and weighs about 3.5kg.Control functionsControl mode: Usually use advanced control algorithms, such as vector control, etc., to achieve high-precision control of the motor, and can flexibly control synchronous or asynchronous motors.Built-in functions: Integrated IPOS positioning and sequencing control system for specific control tasks and logic operations. The application version of the inverter has a "0T" logo at the end, provides an application module interface, and standardized control programs can be used for positioning, curling and control drive tasks, and the user can set the parameters through a wizard without complex programming.Communication capabilitiesIT SUPPORTS A VARIETY OF COMMUNICATION PROTOCOLS, SUCH AS RS-232/RS485, PROFIBUS, INTERBUS, CAN, DEVICE-NET and SBUS, etc., which can communicate and interact with host computers or other devices to achieve remote control and monitoring.
