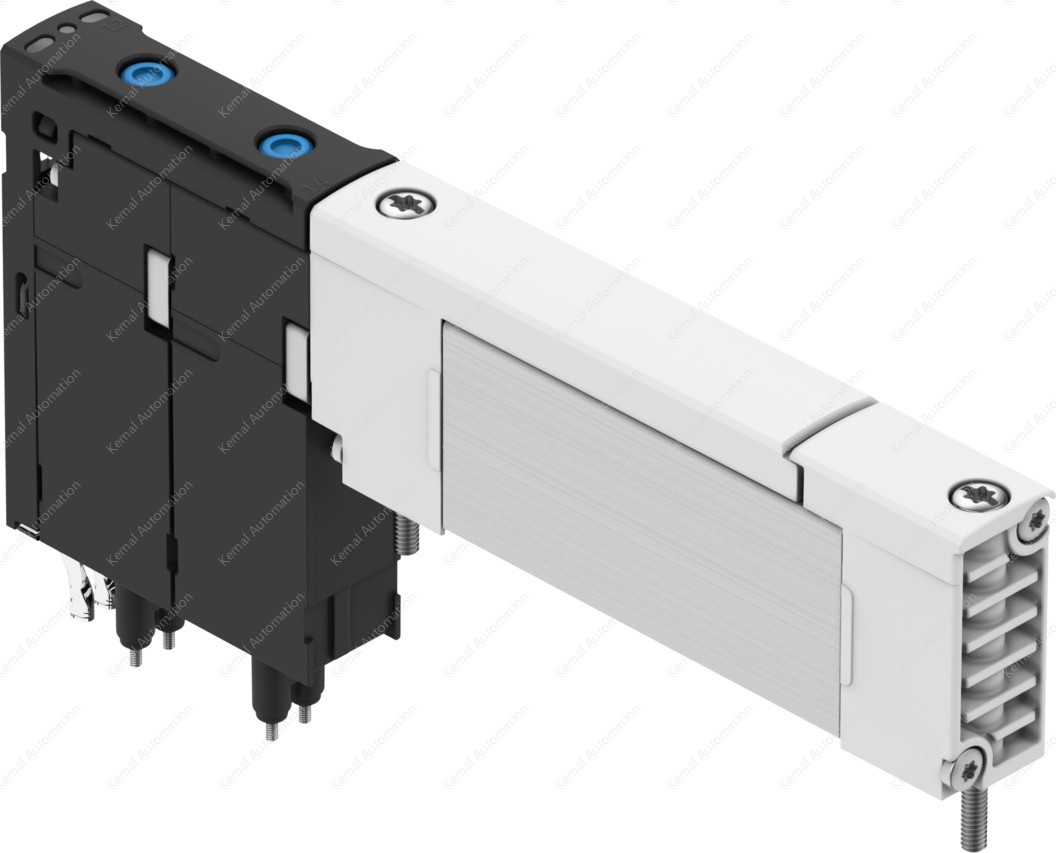

Technical Data
- Valve function2x3/2-way, monostable, closed
- Type of actuationElectric
- Valve size10 mm
- Nominal flow rate standardised according to ISO 8778600 l/min
- Operating voltage24V DC
- Operating pressure0 MPa ... 0.7 MPa
- Operating pressure0 bar ... 7 bar
- DesignPiston slide with sealing ring
- Type of resetMechanical spring
- Degree of protectionIP65
- Width10.35 mm
- Nominal size3.8 mm
- Exhaust-air functionWith flow control option
- Sealing principleSoft
- Mounting positionoptional
- Manual overrideNon-detenting
- Type of pilotingPilot actuated
- Pilot air supplyExternal
- Flow directionReversible
- Symbol00997511
- lapUnderlap
- Signal status displayyes
- Pilot pressure0.2 MPa ... 0.7 MPa
- Pilot pressure2 bar ... 7 bar
- Suitability for vacuumno
- b value0.34
- C value2.3 l/sbar
- Nominal flow rate standardised to ISO 8778 exhaust 2-3650 l/min
- Switching time off17 ms
- Switching time on14 ms
- Duty cycle100%
- Max. positive test pulse with 0 signal1400 µs
- Max. negative test pulse with 1 signal800 µs
- Characteristic coil data24 V DC: 0,35 W
- Permissible voltage fluctuations+/- 10 %
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumEster oil < 0.1 mg/m³, to ISO 8573-1:2010 [-:-:2] Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC1 - Low corrosion stress
- LABS (PWIS) conformityVDMA24364-C1-L
- Storage temperature-20 °C ... 70 °C
- Suitable for use with foodSee supplementary material information
- Media temperature-5 °C ... 50 °C
- Relative air humidity5 - 95%
- Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature-5 °C ... 50 °C
- Max. tightening torque for valve mounting0.375 Nm
- Product weight52.6 g
- Electrical connectionPlug-in
- Type of mountingOn sub-base
- Pilot air port 12/14Sub-base
- Pilot exhaust port 82/84Sub-base
- Pilot air port 12Sub-base
- Pneumatic connection, port 1Sub-base
- Pneumatic connection, port 2Sub-base
- Pneumatic connection, port 3Sub-base
- Pneumatic connection, port 4Sub-base
- Pneumatic connection, port 5Sub-base
- Pneumatic port 82Sub-base
- Note on materialsRoHS-compliant
- Material sealsHNBR
- Material dynamic sealsHNBR
- Material housingAnodised wrought aluminium alloy
- Material springHigh-alloy stainless steel
- Material piston slidePOM
- Material screwsStainless steel
